NotPetya: The $10 Billion Cyberweapon That Changed Cyber Warfare

Summary

On June 27, 2017, the world witnessed one of the most destructive cyberattacks in history. NotPetya, initially disguised as ransomware, tore through global networks causing over $10 billion in damages. What started as a targeted attack against Ukraine quickly spiraled into a worldwide catastrophe that exposed the dangerous connection between state-sponsored cyber warfare and leaked offensive cyber tools.

This comprehensive analysis explores NotPetya’s technical sophistication, traces its lineage back to the Shadow Brokers’ NSA tool leak, and provides actionable prevention strategies to protect against similar attacks.

Table of Contents

1. The Shadow Brokers: The Catalyst
2. NotPetya: Not Your Typical Ransomware
3. Technical Deep Dive: How NotPetya Worked
4. The Global Impact
5. What Could Have Prevented It
6. Lessons for Today’s Defenders
7. Conclusion

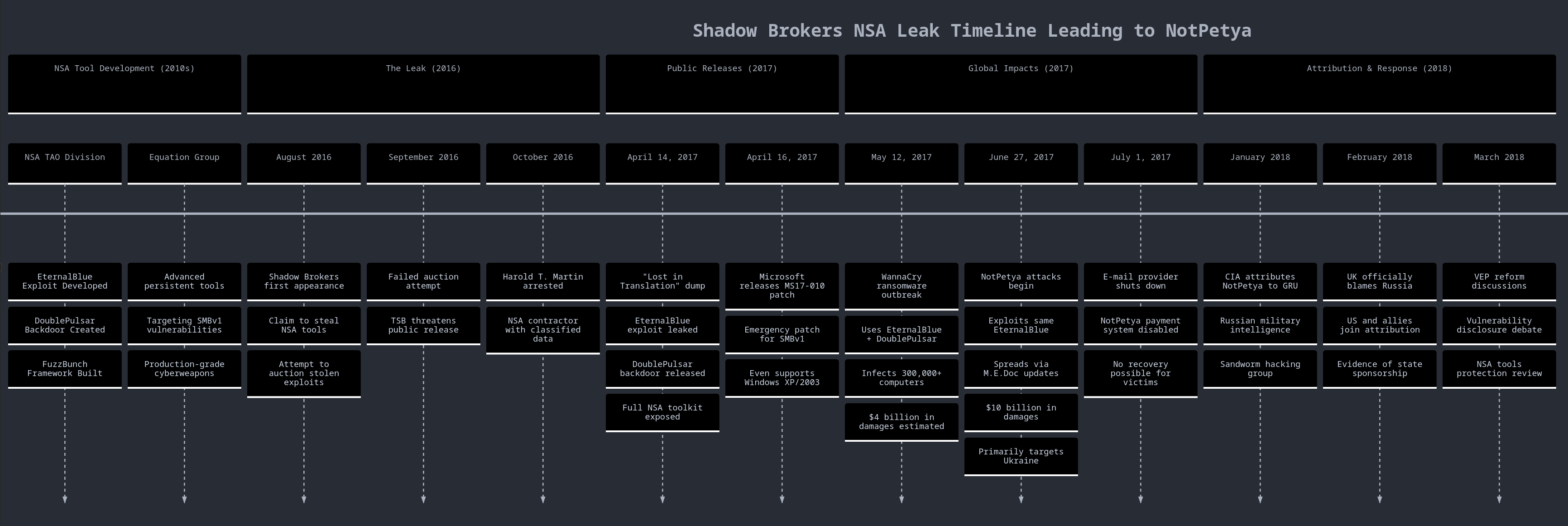

The Shadow Brokers: The Catalyst

Who Were the Shadow Brokers?

In August 2016, a mysterious hacking group calling themselves “The Shadow Brokers” announced they had stolen cyberweapons from the NSA. These weren’t amateur tools—they were production-grade, weaponized exploits developed by the NSA’s legendary Equation Group (part of Tailored Access Operations division).

The Arsenal Revealed

The Shadow Brokers leaked devastating tools that would reshape the cybersecurity landscape:

The Critical Release: April 14, 2017

In what TSB called their “Lost in Translation” dump, they publicly released EternalBlue and DoublePulsar. Microsoft quickly patched these vulnerabilities with MS17-010, even providing updates for unsupported Windows versions. However, many organizations failed to apply these critical patches in time.

The Nation-State Advantage: Why These Tools Were So Powerful

The tools leaked by Shadow Brokers revealed a sobering truth: the capabilities gap between nation-state cyber operations and the rest of the world is vast and growing.

While many security researchers and bug bounty hunters contribute significantly to global security, the most dangerous zero-days often originate from nation-state actors. These groups have vast resources, time, and legal cover to explore vulnerabilities at a depth independent researchers simply can’t match. The leak of tools like EternalBlue showed the scale and maturity of these capabilities—weaponized over years with virtually unlimited backing.

Nation-state cyber units benefit from:

• Dedicated teams of dozens of elite researchers, each focused on one component
• Unlimited time to reverse-engineer targets, sometimes spending months or years on a single exploit
• Classified access to hardware specifications and system internals
• Testing infrastructure with air-gapped networks and custom environments
• Intelligence support (SIGINT/HUMINT backing exploit development)
• Billions in budget for cyber operations that rival top R&D firms

By contrast, individual researchers face legal risks, limited access to proprietary systems, and resource constraints that make it nearly impossible to match state-level capabilities.

From NSA Tool to Global Threat

The leaked tools became the backbone of global cyberattacks: - May 12, 2017: WannaCry ransomware outbreak (EternalBlue) - June 27, 2017: NotPetya attack (EternalBlue + advanced techniques) - 2017-2018: Trickbot and Emotet campaigns (EternalBlue)

NotPetya: Not Your Typical Ransomware

The Initial Deception

NotPetya masqueraded as ransomware, displaying familiar ransom screens and demanding $300 in Bitcoin. However, security researchers quickly realized this was a Trojan horse—the malware was designed for destruction, not profit.

Key Characteristics That Set NotPetya Apart

1. No Real Recovery Mechanism: Unlike typical ransomware, NotPetya’s decryption was impossible, even if victims paid
2. Triple Threat: Combined file encryption, MFT encryption, and MBR overwriting
3. Self-Propagating: Used multiple advanced techniques for lateral movement
4. State-Sponsored: Attributed to Russia’s GRU (specifically the Sandworm group)

The Ukrainian Connection

NotPetya’s initial distribution vector was sophisticated—it hijacked updates from M.E.Doc, a popular Ukrainian accounting software. This supply chain attack suggests detailed reconnaissance and planning by state actors.

Technical Deep Dive: How NotPetya Worked

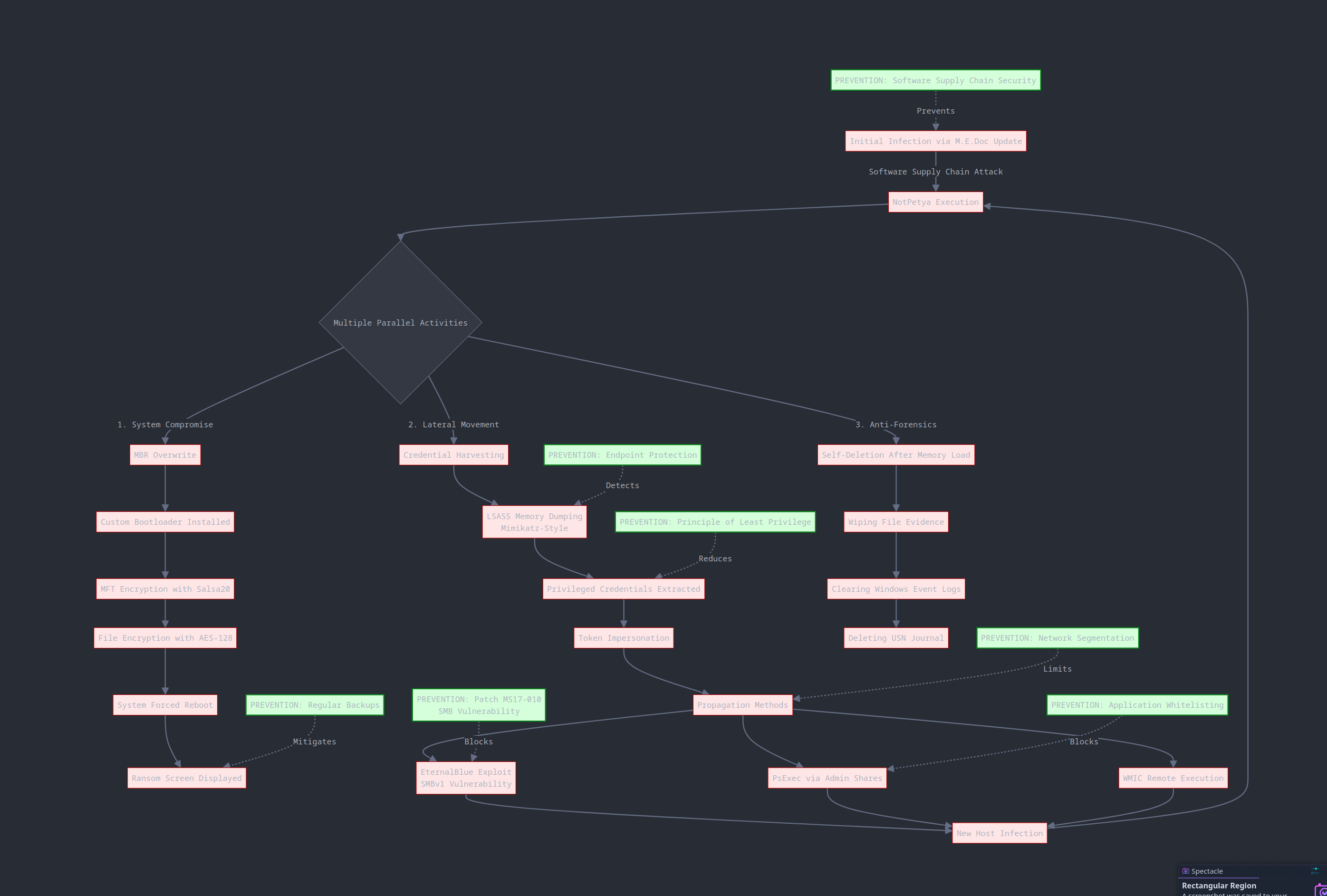

Attack & Timeline Flow Overview

Important Note: The following commands and code samples are simplified educational examples to illustrate the conceptual flow of the attack. They are not the actual code used in NotPetya and should never be executed in any environment. The real malware used highly sophisticated, obfuscated code with complex execution paths.

Phase 1: Initial Infection

# EDUCATIONAL EXAMPLE ONLY - Conceptual illustration of how the attack might have worked
# NotPetya was delivered through M.E.Doc software update
# Once executed, the malware dropped these files:
# - C:\Windows\perfc.dat (main ransomware DLL)
# - C:\Windows\dllhost.dat (PsExec utility for lateral movement)

# The malware DLL was executed with rundll32:
rundll32.exe "C:\Windows\perfc.dat",#1 18

Phase 2: Credential Harvesting

NotPetya employed Mimikatz-like techniques to extract credentials from LSASS memory:

# EDUCATIONAL EXAMPLE ONLY - Not actual attack code
# NotPetya's credential theft module:
# 1. Located LSASS process
# 2. Opened LSASS with VM_READ access
# 3. Located wdigest.dll and lsasrv.dll in LSASS memory
# 4. Extracted credentials similar to:
sekurlsa::logonpasswords

Phase 3: Lateral Movement

The malware used multiple propagation methods:

EternalBlue Exploit:

# EDUCATIONAL EXAMPLE ONLY - Conceptual illustration
# Scanning for vulnerable SMBv1 systems - not actual attack code
nmap -p445 --script smb-vuln-ms17-010 192.168.1.0/24

PsExec Remote Execution:

# EDUCATIONAL EXAMPLE ONLY - Similar concept to what NotPetya employed
# Not the actual obfuscated code used in the attack
C:\Windows\dllhost.dat \\TARGET-PC -accepteula -s -d C:\Windows\System32\rundll32.exe "C:\Windows\perfc.dat",#1 18

WMI Remote Execution:

# EDUCATIONAL EXAMPLE ONLY - Conceptual representation
# The actual attack used highly sophisticated techniques
wmic /node:"TARGET-PC" process call create "C:\Windows\System32\rundll32.exe \"C:\Windows\perfc.dat\" #1 18"

Phase 4: Destruction

NotPetya’s destructive payload involved:

1. MBR Overwrite: Replacing the master boot record with custom bootloader
2. MFT Encryption: Using Salsa20 to encrypt the master file table
3. File Encryption: AES-128 encryption of specific file types
4. Anti-Forensics: Deleting logs, wiping memory, and self-deletion

# EDUCATIONAL EXAMPLE ONLY - Simplified representation
# NotPetya's actual code was far more complex and obfuscated

# Event log clearing concept (not actual attack code)
cmd.exe /c wevtutil cl Setup & wevtutil cl System & wevtutil cl Security & wevtutil cl Application & fsutil usn deletejournal /D C:

# Scheduled reboot mechanism (conceptual example)
cmd.exe /c schtasks /Create /SC once /TN "" /TR "C:\Windows\system32\shutdown.exe /r /f" /ST 16:30

The Global Impact

Financial Damages

Strategic Consequences

• Shipping Industry: Global supply chains disrupted for weeks
• Healthcare: Pharmaceutical production affected
• Energy: Ukrainian power companies targeted
• Government: Ukraine’s infrastructure severely impacted
• Insurance: New “act of war” coverage debates emerged

What Could Have Prevented It

1. Patch Management: The Critical Miss

The Problem: MS17-010 (EternalBlue) had been patched three months before NotPetya struck. Organizations that patched were protected.

The Solution:

# EDUCATIONAL EXAMPLES ONLY - These commands show how to check for patches
# and scan for vulnerabilities but are not actual attack or defense code

# Check if MS17-010 patch is installed
wmic qfe | find "KB4012212" || find "KB4012215" || find "KB4012598" || find "KB4013389"

# Scan network for vulnerable systems - for educational purposes only
nmap -p445 --script smb-vuln-ms17-010 192.168.1.0/24

2. Network Segmentation

Implementation:

# EDUCATIONAL EXAMPLES ONLY - Conceptual firewall rules
# Not actual configurations from the NotPetya incident

# Cisco ASA Firewall ACL Example
access-list RESTRICT_SMB extended deny tcp any any eq 445
access-list RESTRICT_SMB extended deny tcp any any eq 139
access-list RESTRICT_SMB extended permit ip any any

# Windows Firewall to block SMB on client systems
netsh advfirewall firewall add rule name="Block SMB In" dir=in action=block protocol=TCP localport=445

3. Principle of Least Privilege

Implementation:

# EDUCATIONAL EXAMPLES ONLY - These commands illustrate concepts
# but should not be executed without proper planning

# Example of removing unnecessary admin rights
Remove-LocalGroupMember -Group "Administrators" -Member "DOMAIN\username"

# Enable Protected Users security group
# Deploy Microsoft LAPS for unique local admin passwords

4. Application Whitelisting

Implementation:

# EDUCATIONAL EXAMPLE ONLY - Conceptual AppLocker policy
# Not an actual configuration from the NotPetya incident

# AppLocker to prevent unauthorized DLL execution
New-AppLockerPolicy -DllRuleCollection @(New-AppLockerPolicy -RuleType Publisher -FilePathRule "*.dll" -UserOrGroupSid S-1-1-0 -Action Deny)

5. Supply Chain Security

• Inventory all third-party software
• Scan updates before deployment
• Implement application sandboxing
• Monitor for unexpected network connections

6. Advanced Endpoint Protection

# EDUCATIONAL EXAMPLES ONLY - These configurations illustrate security concepts
# The exact settings needed would vary by environment

# Enable Windows Defender Credential Guard
Enable-WindowsOptionalFeature -FeatureName DeviceGuard -Online

# Block credential stealing from LSASS
Set-MpPreference -AttackSurfaceReductionRules_Ids 9e6c4e1f-7d60-472f-ba1a-a39ef669e4b2 -AttackSurfaceReductionRules_Actions Enabled

# Block process creations from PSExec and WMI
Set-MpPreference -AttackSurfaceReductionRules_Ids d1e49aac-8f56-4280-b9ba-993a6d77406c -AttackSurfaceReductionRules_Actions Enabled

7. Disaster Recovery Planning

• Implement 3-2-1 backup strategy
• Test backup restoration regularly
• Create offline backups
• Document recovery procedures

Lessons for Today’s Defenders

1. The Supply Chain is the Battlefield

NotPetya’s use of M.E.Doc demonstrated how attackers will target the trust relationships organizations depend on. Modern examples include SolarWinds and Log4j vulnerabilities.

2. State-Sponsored Attacks Blur Lines

NotPetya showed how tools developed for cyber espionage can cause widespread collateral damage. The distinction between targeted attacks and global pandemics has blurred.

3. Speed of Attack vs. Speed of Defense

NotPetya infected entire networks in minutes. Organizations need automated security responses that match attackers’ speed.

4. The Uneven Battlefield of Cyber Research

The NotPetya attack exposes a fundamental asymmetry in cybersecurity. While independent security researchers continue to push boundaries, the scale, resources, and operational freedom available to nation-state actors create an uneven playing field that’s nearly impossible to balance.

Imagine a single researcher—with no team, limited access to systems, working from a home lab—trying to uncover a remote code execution exploit that could compromise all Windows systems. It might take months or years of relentless effort: * Reversing obscure system calls * Building custom fuzzers from scratch * Bypassing hardened defenses like ASLR and kernel protections * Testing exploits in isolation with no one to review their logic

Meanwhile, nation-state groups can: * Deploy dozens of researchers to collaborate in real-time * Access proprietary hardware and system internals * Utilize labs that simulate real-world environments at scale * Operate with protected time, funding, and legal immunity

Even when an individual researcher discovers a major vulnerability, their ability to understand its full impact is limited. A well-funded actor can infiltrate the supply chain, hijack software updates, or exploit global dependencies, affecting entire industries overnight—as we saw with NotPetya.

This doesn’t mean solo researchers are powerless, but it does mean we must acknowledge the capability gap and not blame individuals for failing to outpace militarized cyber units. The field was never designed to be fair.

5. The Vulnerability Economy is Dangerous

The Shadow Brokers leak demonstrated how offensive tools, once leaked, become global threats. The debate over vulnerability disclosure vs. stockpiling remains critical.

6. Cyber Insurance in the Age of Cyber War

NotPetya led to landmark legal battles over “act of war” exclusions in cyber insurance policies, reshaping the industry.

Conclusion

NotPetya was more than a cyberattack—it was a preview of 21st-century warfare. Born from leaked NSA tools and deployed by Russian military intelligence, it demonstrated how quickly cyber weapons can spiral beyond their intended targets.

The attack highlighted the stark divide between nation-state capabilities and traditional cybersecurity defenses. It’s not just about who discovers the bug—it’s about who can wield it at scale. The NotPetya incident showed that this asymmetry creates a fundamentally unbalanced security landscape where the resources, motivation, and infrastructure of state actors dramatically outpace defensive capabilities.

The technical sophistication of NotPetya, combined with its devastating impact, offers crucial lessons for today’s defenders: 1. Basic security hygiene (patching, segmentation, least privilege) remains essential 2. Supply chain security is no longer optional 3. Recovery capabilities may be more important than prevention alone 4. The intersection of cyber warfare and corporate security demands new defensive strategies 5. We must acknowledge the capability gap between offensive and defensive operations

As we face an era of increasing cyber tensions between nation-states, NotPetya serves as both a warning and a blueprint. Organizations that implement the comprehensive defenses outlined in this analysis will be better prepared for the next generation of cyber weapons, but we must also recognize the fundamental imbalance in this battle—where nation-states can pour virtually unlimited resources into developing weaponized exploits that commercial organizations must then defend against.

Call to Action

For Security Teams: - Conduct a NotPetya readiness assessment - Implement the seven prevention strategies outlined above - Test your recovery capabilities regularly

For Leadership: - Invest in cybersecurity as a business continuity imperative - Consider the geopolitical risks in your threat modeling - Review cyber insurance coverage with “act of war” considerations

For Policymakers: - Strengthen vulnerability disclosure practices - Address the cyber weapons proliferation challenge - Develop clearer frameworks for cyber warfare attribution and response

The next NotPetya is not a question of if, but when. Preparation today determines survival tomorrow.

This analysis is for educational purposes only. All commands and techniques described are simplified examples to illustrate concepts and should never be executed in any environment. The actual NotPetya malware used far more sophisticated, obfuscated code than the educational examples shown here. For more information on protecting your organization, consult with qualified cybersecurity professionals.

References and Further Reading

1. US-CERT Alert on NotPetya
2. CrowdStrike Technical Analysis
3. Wired: The Untold Story of NotPetya
4. Microsoft Security Update MS17-010
5. NSA Shadow Brokers Timeline
